Low-Power Nanosecond Pulsers

Nanosecond Pulser Product Brochure (pdf)

Low Power NSP Users Manual - Oct 2020 (pdf)

High Voltage Nanosecond Pulse Measurement Techniques (pdf) [preliminary]

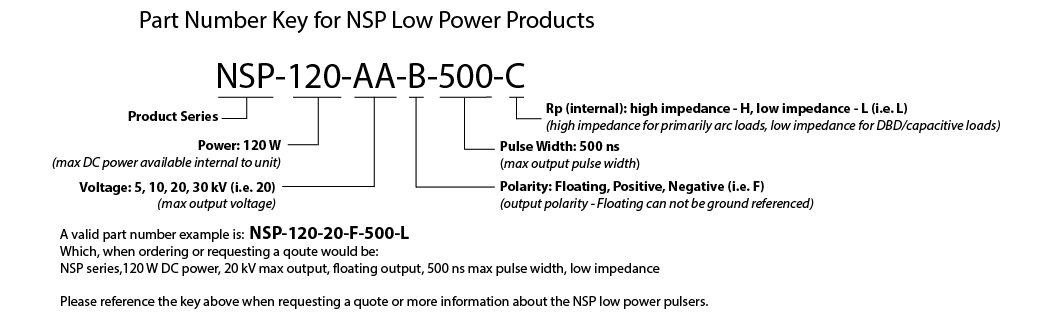

Grounding Options

• Floating output (cannot be grounded): This option is the standard and strongly recommend as it reduces electromagnetic noise, makes voltage measurements cleaner, and produces the fastest rise times.
• Positive referenced output: For applications that require grounded pulsers, the output can be internally grounded at the factory so that the pulser produces a positive voltage.
• Negative referenced output: For applications that require grounded pulsers, the output can be internally grounded at the factory so that the pulser produces a negative voltage.

Internal Parallel Resistance (R_p)

• High impedance: A high internal resistance is optimized for power transfer to resistive loads and sparks and dissipates less power.
• Low impedance: A low internal resistance is optimized for producing fast fall times on capacitive loads (e.g. dielectric barrier discharges).

EHT nanosecond pulsers are used in a wide range of academic research:

Bulusu, RKM, Wandell, RJ, Zhang, Z, Farahani, M, Tang, Y, Locke, BR. Degradation of PFOA with a nanosecond‐pulsed plasma gas–liquid flowing film reactor. Plasma Process Polym. 2020;e2000074.

Ahmad Hamdan, Daniel A Ridani, James Diamond, and Rimeh Daghrir. Pulsed nanosecond air discharge in contact with water: influence of voltage polarity, amplitude, pulse width, and gap distance. 2020 J. Phys. D: Appl. Phys. 53 355202

Wandell, R.J., Wang, H., Bulusu, R.K.M. et al. Formation of Nitrogen Oxides by Nanosecond Pulsed Plasma Discharges in Gas–Liquid Reactors. Plasma Chem Plasma Process 39, 643–666 (2019).

Reguig, B. Ramljak, K. P. Chatelain, J. S. Damazo, E. Kwon and D. A. Lacoste, Comparison of Electrical Breakdowns Produced by a Nanosecond High-Voltage Pulse Applied to Metallic and Composite Material Electrodes, in IEEE Transactions on Plasma Science, vol. 47, no. 10, pp. 4683-4690, Oct. 2019.

Huihui Wang, Robert J Wandell, Kosuke Tachibana, Jan Voráč, and Bruce R Locke. The influence of liquid conductivity on electrical breakdown and hydrogen peroxide production in a nanosecond pulsed plasma discharge generated in a water-film plasma reactor. 2019 J. Phys. D: Appl. Phys. 52 075201

Radha Krishna Murthy Bulusu, Robert J Wandell, Rachel O Gallan, and Bruce R Locke. Nitric oxide scavenging of hydroxyl radicals in a nanosecond pulsed plasma discharge gas–liquid reactor. 2019 J. Phys. D: Appl. Phys. 52 504002.

Juliusz Kruszelnicki, Kenneth W Engeling, John E Foster, Zhongmin Xiong, and Mark J Kushner. Propagation of negative electrical discharges through 2-dimensional packed bed reactors. 2017 J. Phys. D: Appl. Phys. 50 025203

Ahmad Hamdan, Jérémy Gorry, Thomas Merciris, and Joëlle Margot. Electrical characterization of positive and negative pulsed nanosecond discharges in water coupled with time-resolved light detection. J. Appl. Phys. 128, 033304 (2020);

Kenneth W Engeling, Juliusz Kruszelnicki, Mark J Kushner, and John E Foster. Time-resolved evolution of micro-discharges, surface ionization waves and plasma propagation in a two-dimensional packed bed reactor. 2018 Plasma Sources Sci. Technol. 27 085002

Robert J. Wandell, Huihui Wang, Kosuke Tachibana, Basiel Makled, Bruce R. Locke. Nanosecond pulsed plasma discharge over a flowing water film: Characterization of hydrodynamics, electrical, and plasma properties and their effect on hydrogen peroxide generation. Plasma Process Polym. 2018;15:e1800008

Y. Liu, M. B. Cohen and M. L. R. Walker, Time-Resolved Measurements of Plasma Parameters for Nanosecond-Pulsed Argon Plasmas, in IEEE Transactions on Plasma Science, vol. 48, no. 4, pp. 1060-1075, April 2020.

John E Foster, Selman Mujovic, Joseph Groele, and Isaiah M Blankson. Towards high throughput plasma based water purifiers: design considerations and the pathway towards practical application  2018 J. Phys. D: Appl. Phys. 51 293001

R. Brubaker et al., Influence of dielectric coatings on pin-to-rod nanosecond-pulsed discharges in phosphate-buffered saline," in IEEE Transactions on Radiation and Plasma Medical Sciences.

Stefan Schönekerl, Astrid Weigert, Stephan Uhlig, Katharina Wellner, Richard Pörschke, Christel Pfefferkorn, Karsten Backhaus, and André Lerch. Evaluating the Performance of a Lab-Scale Water Treatment Plant Using Non-Thermal Plasma Technology Water 2020, 12(7), 1956;
