Bilevel/Dual-Channel Pulse Generator

This dual-channel pulse generator produces high-voltage square-pulses for electrode driving, grid biasing applications, and plasma sources. The two channels can be used together to produce bilevel waveforms or independently to drive two separate loads. These units are simple to operate, and allow the user to rapidly install a robust pulsed power system for plasma or biomedical applications.

Request a Quote

Applications

Electroporation

Click the Tabs Below for More Information

Features Specifications Output Waveforms

Features

Use the two channels together to generate bilevel output waveforms
Independent, user control pulse width and pulse repetition frequency
Fiber-optically isolated gate control
Overcurrent protection with latching logic
Operates with user's DC power supplies

Specifications

Output voltage: 0 - 1000 V
Output current: 0 - 20 A
Pulse width: 100 ns - DC (droop set by energy storage and user's load)
Max pulse repetition frequency*:
- 100 kHz (up to 800 V)
- 70 kHz (up to 1000 V)
Duty cycle: 0 - 100%
Control: fiber-optically isolated external gate
Number of input channels: 2
Number of output channels: 2

May not be simultaneous maximums - contact EHT with application questions.

Output Waveforms

Load voltage (Blue/Ch. 2) and current (Green/Ch. 4) for a 1000 V, 2.5 µs into 55 Ω load.

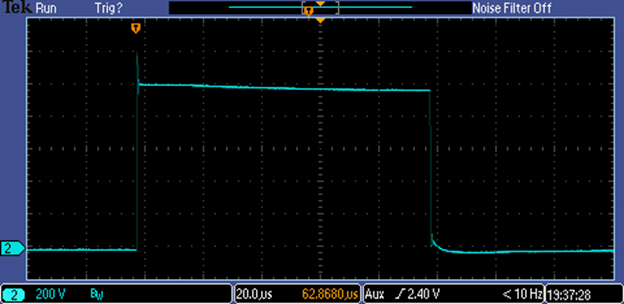

Load voltage (Blue/Ch. 2) and current (Green/Ch. 4) for a 1000 V, 100 µs into 55 Ω load.

Operating output channels in parallel to produce dual voltage output pulse into a 55 Ω load. The total shot length is 10 µs. Channel 1: 5 µs pulse width, 300 V charge. Channel 2: 5 µs pulse width with 5 µs delay, 1000 V.
